UNIT FEATURES
• Full color TFT display with user selectable color themes and large easy to read fonts
• Optional wireless foot pedal (sold separately)
• Carefully tuned capacitive-touch user interface

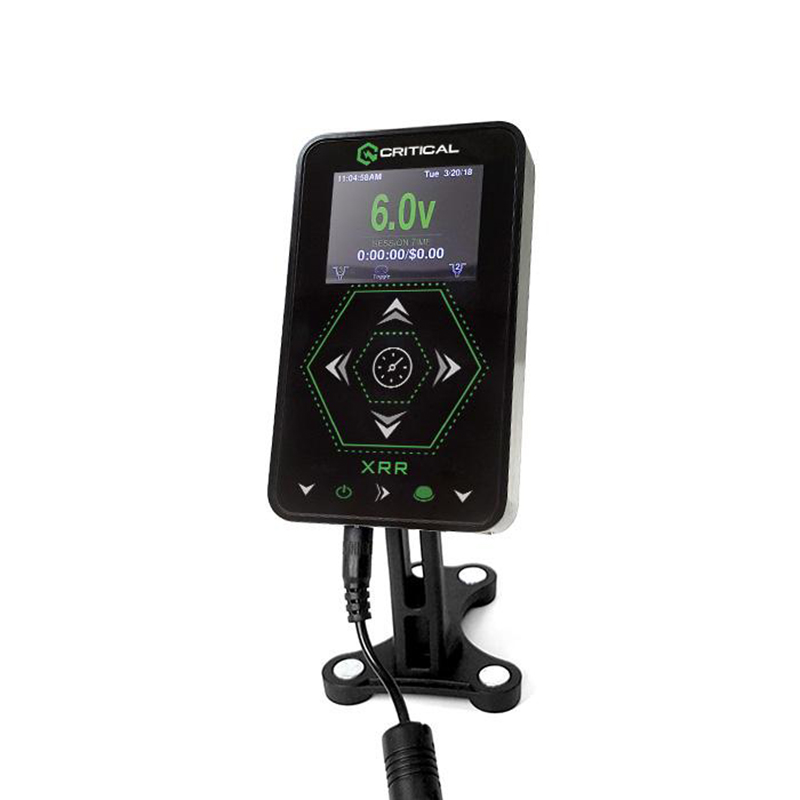

• Mount design for more mounting flexibility
• Jump start feature and maintained pedal modes now independently assignable to preset/output buttons
• Session meter based on user set hourly rate: session mode, run time mode, or hybrid mode (new "Hybrid" billing mode automates user input)
• Pedal override button: No need for a foot pedal
• Time of day
• Dual Independent Outputs
• Easily bagged with typical machine or bottle baggies
• Additional mounting options available
UNIT SPECS
• Billet aluminum CNC machined housing
• Genuine high quality Amphenol 1/4" jacks for better power delivery and long life
• 6 amp peak inrush current, 3 amp true RMS continuous current
• Precision regulated set point voltage 0-17v
• Built in short circuit protection
• .1 volt adjustment resolution
• Voltage presets with 2, 4, or 6 machine memory modes
• Non-volatile memory
• Universal input 90-240vac 50/60hz

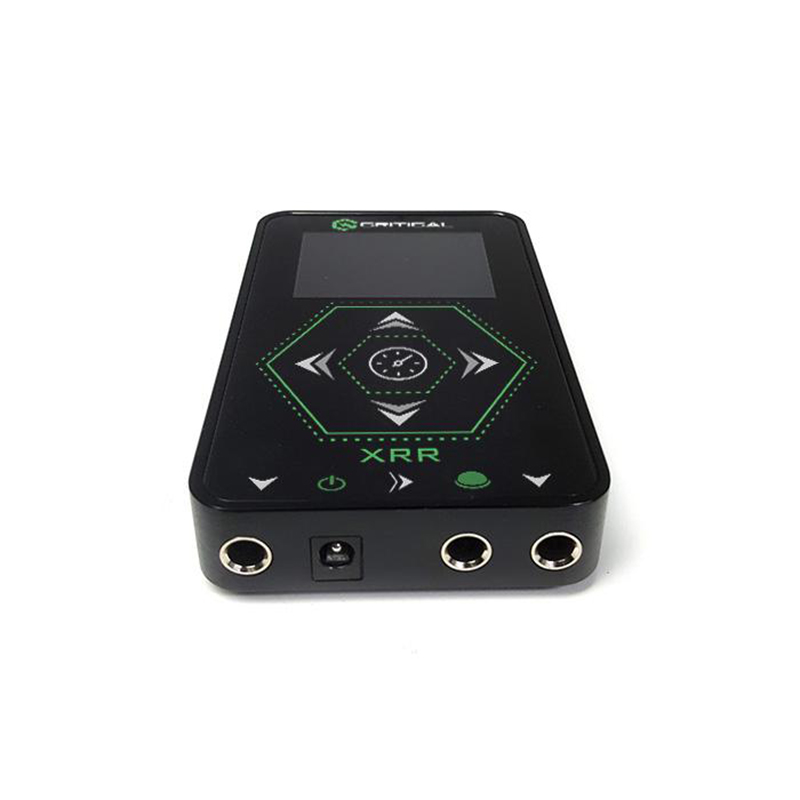

• Accepts standard 1/4" clip cord and foot pedal connections
• Volts, Amps, Speed (hz), Duty Cycle(%), and STL
• 2 year full manufacturer warranty
• Included: XRR power supply, Magnet mount, US power cord and switching power adapter
• Made in the USA
)
)
)
